What is Dewatering?

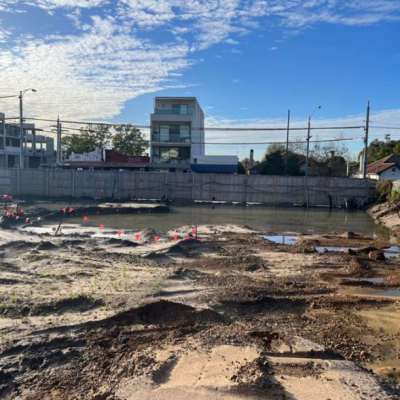

A construction dewatering refers to the process of removing or controlling groundwater and surface water from a construction site to create a dry working environment. It is commonly used in construction projects involving excavations, underground structures, foundations, tunnels, or any other activities that require working below the water table or in water-saturated conditions.

The main objective of construction dewatering is to lower the water table or reduce the water pressure to enable safe and efficient construction operations. Excessive water can hinder excavation, increase soil instability, affect the integrity of structures, and cause safety hazards. By implementing dewatering techniques, construction sites can manage water effectively and create a stable, dry working area.

lls with larger diameters are used. They are typically installed using drilling equipment and are equipped with submersible pumps to lift the water to the surface.

Various dewatering methods are employed based on the site conditions and project requirements.Some common techniques include:

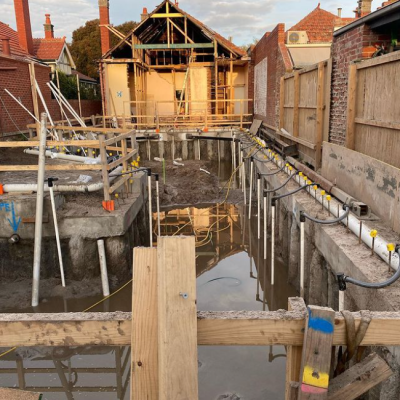

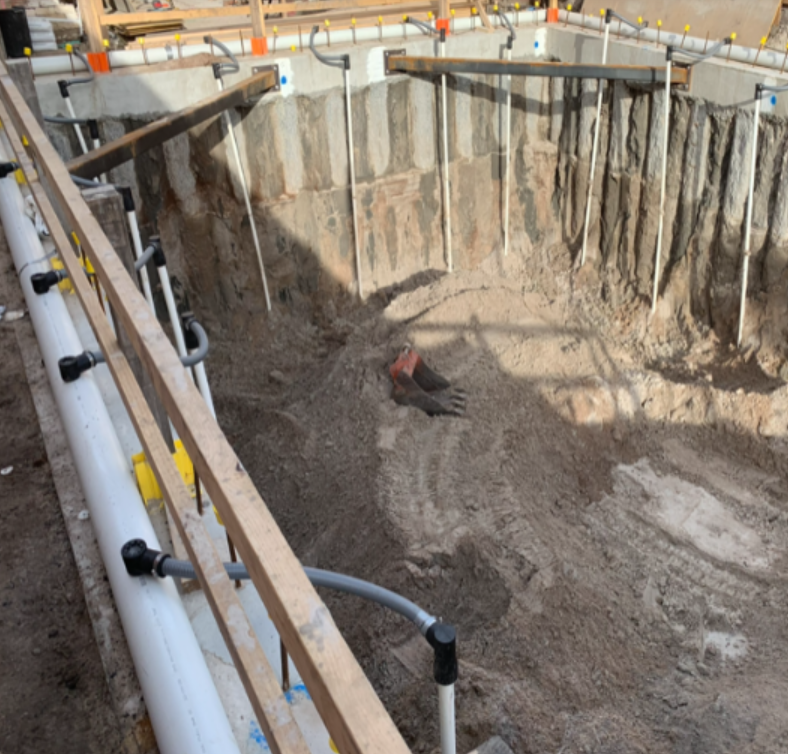

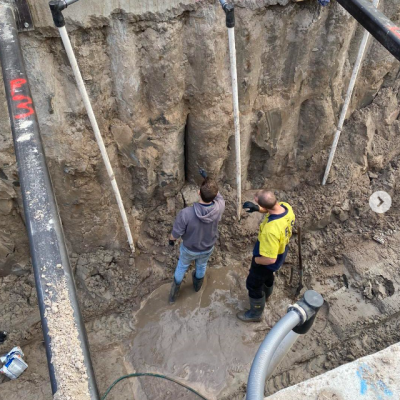

1. Spearpoints: A series of closely spaced shallow wells are installed around the excavation area. These wells, typically 40 to 50 mm in diameter, are connected to a vacuum or centrifugal pump that lowers the groundwater level by creating a localized depression cone.

2. Deep Wells: When the water table is deeper, deeper wells with larger diameters are used. They are typically installed using drilling equipment and are equipped with submersible pumps to lift the water to the surface.

3. Sumps and Pumps: Sumps are excavated at strategic locations, and submersible or centrifugal pumps are used to remove water from the sumps. This method is often used when the water sources are localized and can be efficiently collected in sumps.

4. Open Excavation: For shallow excavations in permeable soils, open excavations can be employed, allowing water to drain naturally or with the assistance of pumps.

5. Geotextile Dewatering: Geotextile materials with high permeability are used to separate the water from the soil. The water is drained through the geotextile while the soil is retained, allowing for dewatering.

It is essential to implement construction dewatering in a manner that complies with environmental regulations and considers the impact on nearby ecosystems and water sources. Proper planning, monitoring, and management of dewatering activities are crucial to minimize adverse effects on the environment and ensure the safe and successful execution of construction projects.

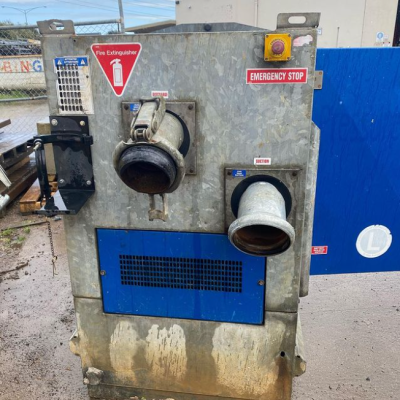

What is a vacuum pump?

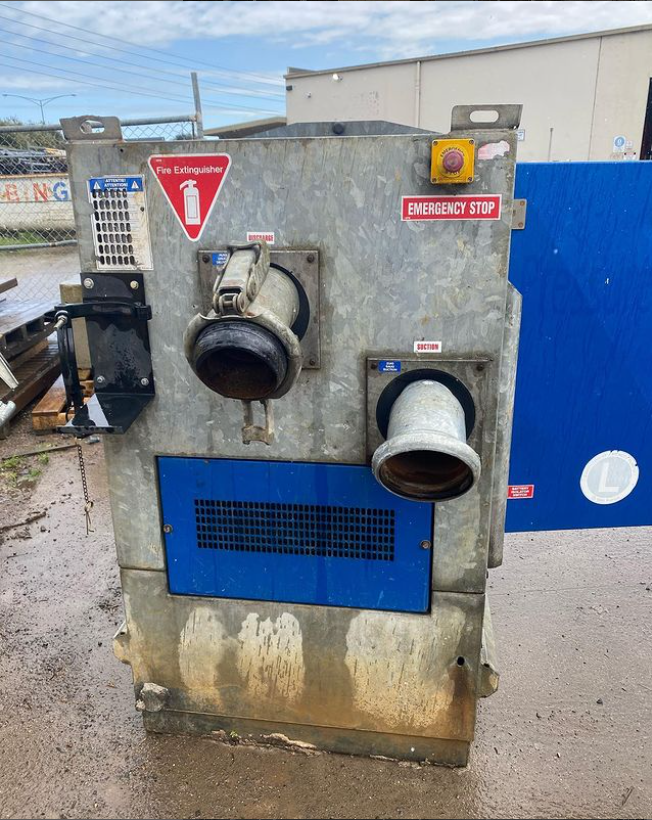

A vacuum dewatering pump uses the principle of negative pressure or suction to remove water from a surface. The pump creates a vacuum or low-pressure zone, which causes the water to be drawn towards it and away from the surface. A vacuum dewatering pump is a type of pump used to remove water or liquid from an area or a surface. It operates by creating a vacuum or low-pressure environment that allows water to be drawn or sucked out. Here's how a vacuum dewatering pump typically works:

1. Surface Preparation: Before using the pump, the surface or area to be dewatered is usually prepared by removing any debris, leveling it, and ensuring proper drainage.

2. Pump Setup: The vacuum dewatering pump is set up near the area that needs to be dewatered. It consists of a pump unit, usually powered by an electric motor or an diesel engine, and a suction hose or pipe.

3. Suction Process: The suction hose or pipe is placed in the water or liquid that needs to be removed. When the pump is activated, it creates a vacuum or negative pressure within the pump system.

4. Water Extraction: The vacuum created by the pump causes water or liquid to be drawn into the suction hose or pipe. As the water enters the pump, it passes through the pump unit, which may include impellers or other components that facilitate the pumping process.

5. Discharge: The extracted water or liquid is then discharged or expelled from the pump system through an outlet hose or pipe. It can be directed to a suitable drainage area or collection point. (Sediment tank).

Vacuum dewatering pumps are commonly used in various applications, such as construction sites, basements, mines, and other areas where water or liquid needs to be removed efficiently. They can help accelerate the dewatering process, reduce water content in materials, and create dry conditions for further work or operations.

Both sediment tanks and clarifiers play essential roles in removing solid particles and sediments from wastewater, improving the overall quality of water before it undergoes further treatment processes.

Magnetic trade waste flow meters.

A magnetic flow meter is a device used to measure the flow rate of conductive fluids in a pipe or conduit. It utilizes the principle of electromagnetic induction to determine the flow velocity of the fluid. When it comes to trade waste, magnetic flow meters can be beneficial for monitoring and managing the flow of wastewater or industrial effluent. These meters are particularly useful in industries such as manufacturing, chemical processing, and water treatment, where accurate measurement of trade waste is crucial for regulatory compliance and process optimization.

Here are some key advantages of using a magnetic flow meter for trade waste applications:

1. Accuracy: Magnetic flow meters provide highly accurate flow measurements, even for fluids with varying viscosities, densities, and solid contents. This accuracy is maintained over a wide range of flow rates, making them suitable for trade waste applications with fluctuating flow conditions.

2. Non-intrusive Design: Magnetic flow meters do not have any moving parts that come into contact with the fluid. This non-intrusive design minimizes the risk of clogging or damage due to debris or particulate matter in the waste stream. It also reduces maintenance requirements and improves the overall reliability of the meter. It's important to note that the specific requirements for a magnetic flow meter used in trade waste applications may vary depending on factors such as pipe size, fluid characteristics, regulatory standards, and budget constraints. Consulting with a qualified flow meter supplier or an engineering professional can help you select the most suitable magnetic flow meter for your trade waste monitoring needs.

Sediment tanks and clarifiers are components commonly used in wastewater treatment processes to remove solid particles and sediments from the water. These tanks play a crucial role in the primary treatment phase of wastewater treatment plants.

Sediment tanks, also known as sedimentation basins or settling tanks, are designed to allow solid particles to settle at the bottom of the tank through the process of sedimentation. Wastewater enters the tank and is held there for a certain period, allowing gravity to separate heavier particles from the water. These tanks are typically large, shallow structures with a slow flow rate to facilitate the settling process. During the sedimentation process, the velocity of the water slows down, and the gravitational forces cause suspended solids, such as sand, silt, and organic matter, to settle at the bottom of the tank. The settled particles form a layer of sludge, which is periodically removed for further treatment or disposal. The clarified water above the settled solids flows out of the tank for further processing in the treatment plant.

Clarifiers, also called sedimentation tanks or secondary clarifiers, are used to further separate the remaining suspended solids from the water after the primary treatment. The purpose of clarifiers is to provide additional settling time to ensure that the water leaving the tank is as clear as possible. In a clarifier, the wastewater flows into a larger tank with a slower flow rate compared to sediment tanks. This reduced velocity allows smaller and lighter particles to settle. The settled particles form a sludge layer at the bottom of the clarifier, which is removed periodically. The clarified water at the top is then directed to the next treatment stage. Clarifiers often incorporate mechanisms such as mechanical scrapers or rakes to remove the accumulated sludge from the tank bottom. These mechanisms help prevent the sludge from mixing with the clarified water. Both sediment tanks and clarifiers play essential roles in removing solid particles and sediments from wastewater, improving the overall quality of water before it undergoes further treatment processes.
